MICROCONTROLLER (MCU)
STM32F405RGT6(32-bit Arm Cortex-M4, 168 MHz, LQFP64)
The FTD Flight Controller is a compact 36 x 36 mm stack-mount autopilot built around the STM32F405 microcontroller and TDK InvenSense ICM-42688-P 6-axis gyro and accelerometer. Designed for multirotors and autonomous UAV platforms, it combines stable flight control with practical sensor integration and USB Type-C setup.

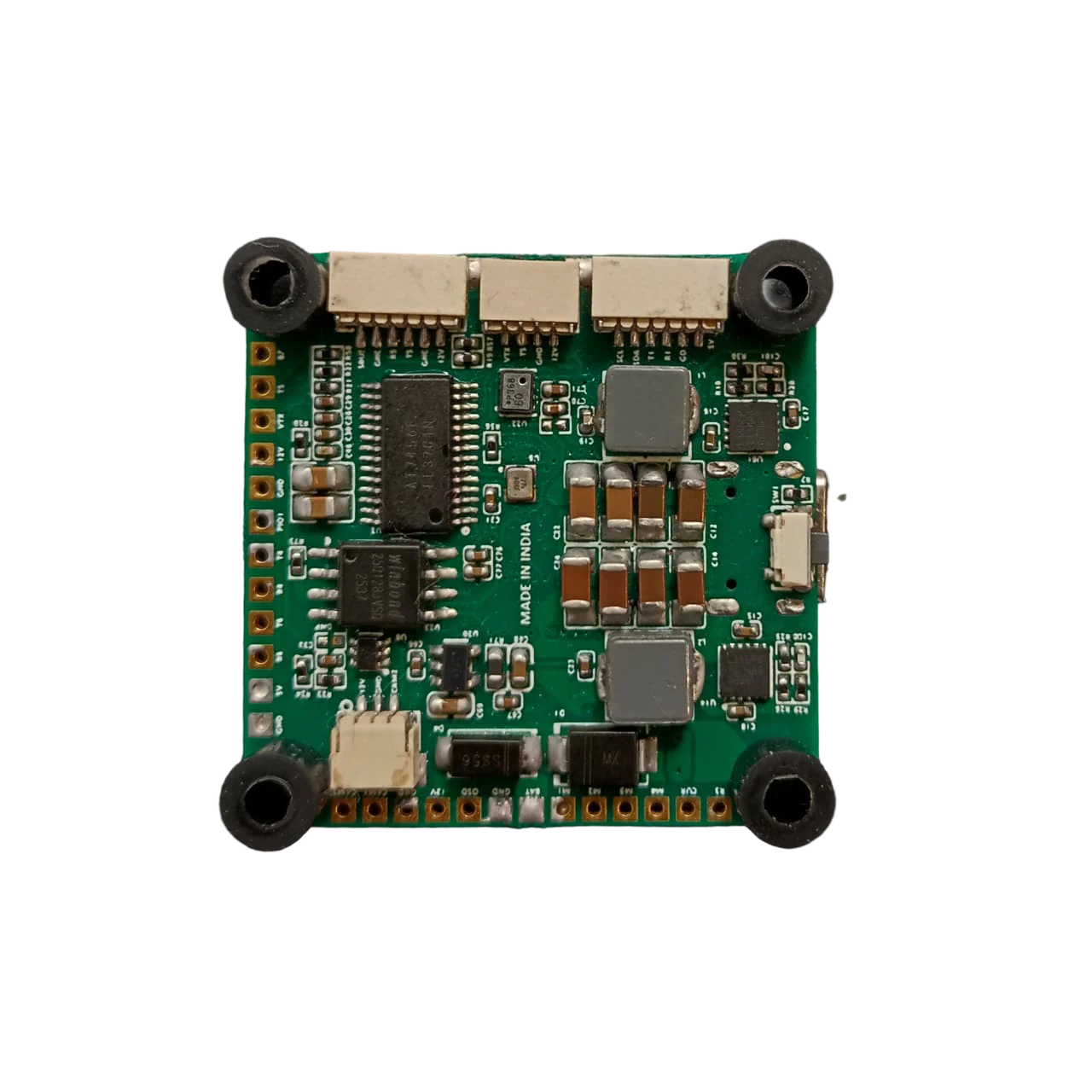

Wide 3S-8S LiPo input, dual buck regulation, 16 MB Winbond Blackbox flash, and an Infineon DPS368 barometer bring core avionics onto one board. Six UART sets, edge solder pads, and JST connectors on both faces support rapid integration and field maintenance.
STM32F405RGT6(32-bit Arm Cortex-M4, 168 MHz, LQFP64)
ICM-42688-P(6-axis gyro / accelerometer; ICM-42605 alternate)
Infineon DPS368(High-precision pressure sensor)
Winbond W25Q128JV(128 Mbit (16 MB) SPI NOR flash)
3S-8S LiPo(Dual onboard buck regulator stages)
5V, 4.5V (4V5), 12V(Regulated power rails)
6 dedicated sets(UART1 GPS; UART2 ELRS; UART3 ESC telemetry; UART4 custom; UART5 Digital VTX; UART6 custom)
JST-SH connectors(8-pin ESC; camera 1/2; Digital VTX, Analog VTX and GPS)
36 x 36 mm | 9 g(Four corner mounts with rubber grommets)
INAV / Betaflight / ArduPilot(Target 2.6; ArduPilot support under development; Made in India)
