GNSS RECEIVER
u-blox MAX-F10S-00B(Dual-band L1/L5 capable)

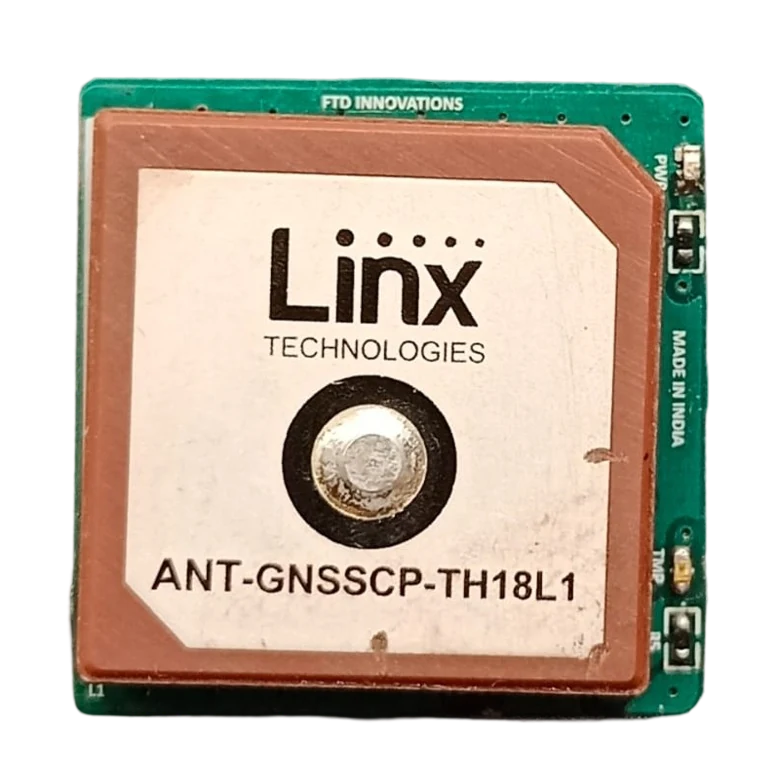

The FTD GPS Module combines a u-blox MAX-F10S GNSS receiver with an iST8310 3-axis compass on a compact 20 x 20 mm board. It connects to a flight controller over one 6-pin JST carrying 5V, UART, and I2C.
The MAX-F10S supports L1/L5 GNSS, while the unit shown is fitted with an L1-only Linx patch antenna. A Taoglas L1/L5 antenna is listed as an alternate; confirm the antenna fitted to the specific module.
u-blox MAX-F10S-00B(Dual-band L1/L5 capable)
Linx 18 x 18 mm(L1 only; confirm antenna fitted)
Taoglas 25 x 25 mm(L1/L5 variant)
GPS, Galileo, BeiDou, QZSS, NavIC, SBAS
1.5 m CEP(1.0 m CEP with SBAS; open sky)
Up to 10 Hz(Highest rate may limit constellations)
iSentek iST8310(3-axis magnetometer)
UART + I2C(GNSS UART; compass I2C up to 400 kHz)
6-pin JST(5V, GND, TX, RX, SDA, SCL)
Seiko MS621FE(Rechargeable hot-start backup)
TI TLV75733P(3.3V, 1A LDO)
INAV / Betaflight / ArduPilot(u-blox protocol)
20 x 20 mm | 8 g
Made in India
